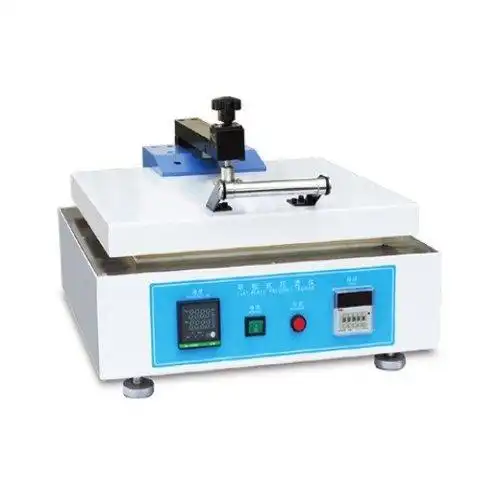

Flatbed Ironing Tester

I. Product Overview

IlFlatbed Ironing Tester is a precision instrument designed to evaluate fabric performance under simulated ironing conditions. It measures heat resistance, crease recovery, and shrinkage resistance, providing critical data for textile quality control and R&D applications.

• Type: Bench-top thermal testing equipment
• Temperature Range: Ambient +20°C to 300°C
• Pressure Control: 0.5-5 kPa adjustable (simulates iron weights)
• Test Area: 300×300mm heated flatbed
• Applications: Apparel, home textiles, industrial fabrics

• Multi-Test Modes:
  • Crease Recovery Test: Measures angle retention after 5min pressing
  • Shrinkage Test: Evaluates dimensional stability at 180°C
  • Heat Setting Test: Simulates industrial ironing conditions
• Digital Control System:
  • 7-inch touchscreen interface
  • Programmable 100-step test sequences
  • Real-time data logging (CSV export)
• Safety Features:
  • Overheat protection (auto-shutdown at 310°C)
  • Interlock door switch
  • Grounding indicator

• ISO 3758 (Textile care labeling)
• ASTM D1683 (Fabric wrinkle recovery)
• AATCC 117 (Flammability resistance)
• GB/T 3917.3 (Chinese textile shrinkage standard)

1. Quality Control: Batch testing of finished fabrics
2. R&D: Developing wrinkle-resistant treatments
3. Textile Education: Training on heat treatment effects
4. Forensic Analysis: Evaluating garment damage causes

1. Sample Preparation: Cut 100×100mm specimens
2. Positioning: Center sample on heated plate
3. Parameter Setup: Select test mode (e.g., 200°C/3kPa/5min)
4. Data Acquisition: Record recovery angle/shrinkage rate
5. Cleaning: Autoclave decontamination cycle

• Wear heat-resistant gloves during operation
• Use heat-resistant mats under equipment
• Maintain 30cm clearance from flammable materials
