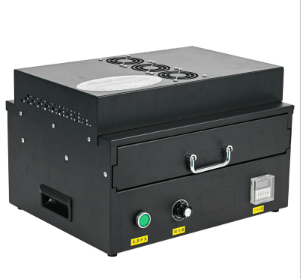

UV curing light box

Standard

• ISO 10977: Adheres to industrial standards for UV curing of adhesives and coatings.
• ASTM E3022: Meets requirements for radiometric measurements in UV curing systems.
• IEC 62471: Compliant with photobiological safety regulations for UV exposure.

Vantaggi del prodotto

1. Professional-Grade UV Curing

• High-Intensity LEDs: 365nm/385nm/405nm wavelength options for targeted adhesive curing.
• Flicker-Free Operation: Stable 50,000+ hour lifespan with <1% output decay.

2. Safety-First Design

• Fully Enclosed Chamber: Eliminates UV leakage during operation (UVC <0.1 µW/cm²).
• Interlock Safety System: Auto-shutoff when door is opened.

3. Portable Performance

• 5kg Lightweight Build: Ergonomic handle for benchtop to field use mobility.
• 110–240V Universal Power: Ready for global lab and production lines.

4. Industrial Durability

• All-Metal Housing: Anodized aluminum body resists solvents and impacts.
• -20°C to 60°C Operating Range: Stable performance in extreme environments.

5. Energy Efficiency

• 800W Max Power Consumption: 70% less energy vs. mercury arc lamps.
• Instant On/Off: No warm-up/cool-down cycles for rapid workflows.

Caratteristiche del prodotto

• LED System:
  • Wavelength Options: 365nm (UVA), 385nm (UVB), 405nm (UVC) selectable.
  • Uniformity: >90% irradiance homogeneity across 450mm × 400mm work area.
• Control Panel:
  • Digital timer (1–999 seconds) with auto-repeat function.
  • Adjustable power output (10–100%) for precise dose control.
• Safety Systems:
  • Emergency stop button with E-Stop loop monitoring.
  • Overheat protection at 60°C with auto-cooling fans.
• Ergonomics:
  • Removable glass window for sample access.
  • Adjustable shelf height (0–50mm) for 3D objects.
• Connectivity:
  • USB port for firmware updates and remote diagnostics.
  • RS-232 interface for PLC integration.

Parametri tecnici

Accessories & Options

1. Wavelength Kits:
   • 365nm + 385nm dual-band modules.
   • 405nm deep-cure modules for thick adhesives.
2. Safety Gear:
   • UV-blocking goggles (OD 5+ at 365nm).
   • Radiation shielding curtains.
3. Calibration Services:
   • Annual NIST-traceable irradiance mapping.
   • Spectral output verification.
4. Custom Upgrades:
   • Nitrogen purge system for oxygen-free curing.
   • Chiller integration for high-power applications.
5. Consumables:
   • 10 × Replacement quartz glass windows.
   • 1L UV-cleaner for optics maintenance.
