Introduzione al prodotto:

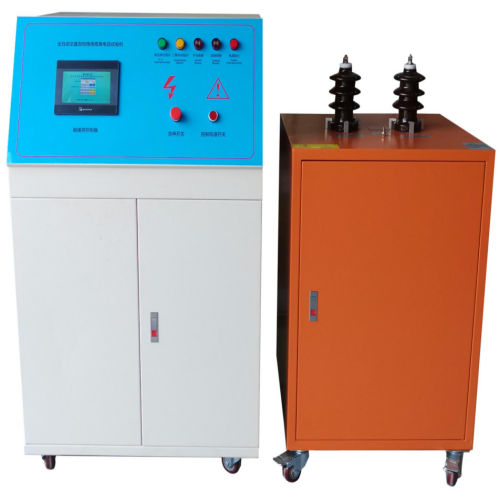

Automotive wire AC and DC high voltage testing machine for wire and cable products to test the insulation between the core and the core or between the core and the skin.

Parametri principali:

1, power: 3KVA,

2, Input voltage: 220V/50HZ

3, voltage output: AC/DC: 0 —— 10KV or 0 —— 15KV

4, breakdown current: 0 —— 300 mA or 0 —— 500 mA

5, test time: 1 —— 999.9S /M/H can be set

6, boost mode: there is a voltage preset function, according to the voltage set value of automatic electric boost to the set value

7, boost speed: 10V-500V/S can be set

8, alarm function: threshold safety alarm, voltage zero safety alarm, boost acousto-optic alarm, breakdown alarm

9, emergency stop function: with emergency stop function, can quickly cut off the voltage, suspend the test

10, transformer protection function: When the transformer overloads, it can automatically cut off the test input voltage, suspend the test, and protect the transformer
