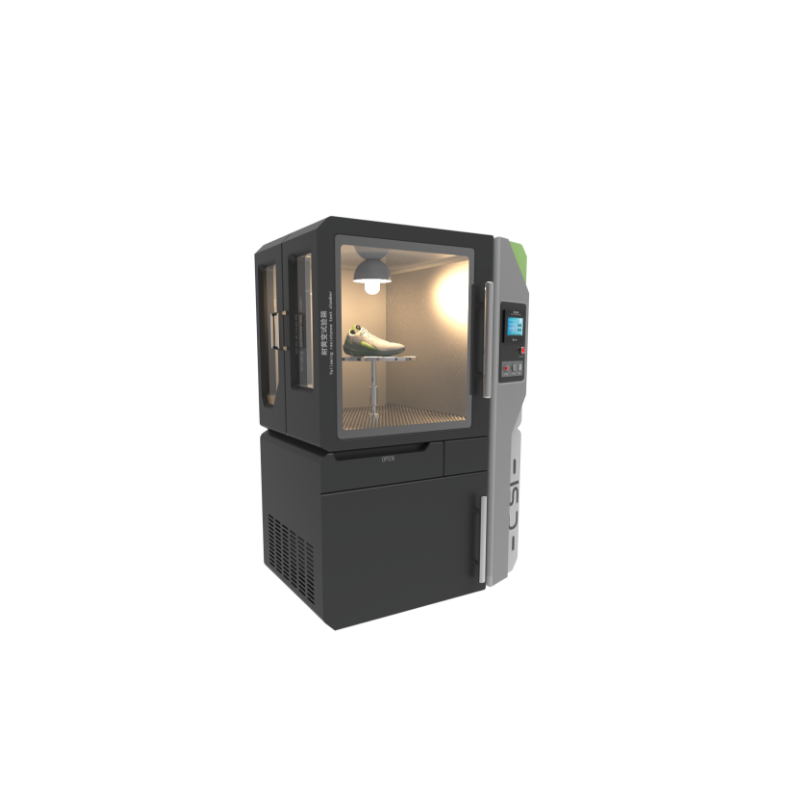

Yellowing resistance test chamber

Campo di applicazione:

Test method for determining the yellowing resistance of light and white products, such as upper and bottom materials for shoes, to approximate sunlight and ultraviolet light. According to the light-colored or white products, the phenomenon of yellow color is easy to occur in the natural sunlight for a long time, with the solar lamp and heating temperature control device to simulate the natural environment, within the specified time, observe the change of the surface color of the sample, determine the degree of discoloration of the sample, so as to determine the ability of the material to resist yellow under sunlight radiation.

Norme applicabili:

HG/T3986, ASTM D1748, etc.

Parametri tecnici:

Light source: 300W UV light bulb imported from Germany;

Temperature range: Room temperature +5℃ ——200℃℃：

Temperature uniformity :± 2'C;

Electric heating power: 500W and 1000W two groups;

Temperature control :LED digital display, PID temperature controller:

Time control :0——9999min or 0——9999h;

Test frame: diameter 400mm, speed 1——20rpm adjustable, single-layer test frame;

Working rate size :500x500x600mm（WxDxH）;

Dimensions :500x500x600mm（WxDxH）;

Power supply :AC220V, 1.8KW.
