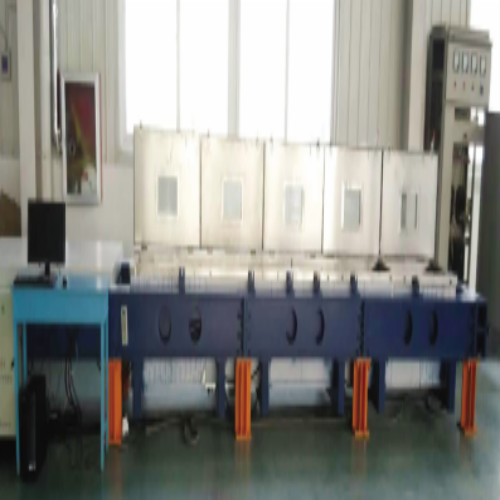

Computer controlled horizontal tensile testing machine

Introduzione al prodotto:

The microcomputer controlled horizontal tensile testing machine （hereinafter referred to as the testing machine） is mainly used for steel wire rope, wire and cable, anchor chain, round wire concentric gallows empty wire, insulator and other metal materials, non-metal materials, structural parts tensile performance test, determination of its mechanical properties parameters, characteristic values. The testing machine is widely used in industrial and mining enterprises, power engineering, bridge engineering, petroleum industry, scientific research institutes and colleges and universities mechanics laboratory and structure laboratory.

Norme applicabili:

GB/T 2611 "General Technical Requirements for Testing Machine"

GB/T 6825.1 "Testing of static uniaxial testing machines - Part 1: Testing and calibration of force measurement systems for tension and/or pressure testing machines"

Performance parameters:

Maximum test force: 200kN

Test force measurement range: 1%——100%F.S

Relative error of test force indication value: within ±1

Test force resolution: 1/300000FS1

Relative error of beam displacement: within ±1

Displacement resolution: 0.01mm

Relative error of deformation indication value: within ±1

Deformation resolution: 1/300000Fs

Beam speed adjustment range: 0.01——200mm/min

Stress rate range: 2——60N/mm/s |

Relative error of beam speed: within ±1% of the set value

Force control rate adjustment range: 0.005%——0.5%FS/S

Relative error of force control rate: within ±0.5%

Deformation control rate adjustment range: 0.02%——5%FS/S

Deformation control rate relative error: when the rate is less than 0.05%FS, less than 2%FS/S; When the rate is greater than 0.05%FS, the rate is less than 0.5%FS/S

Constant force, constant deformation, constant displacement control range: 0.5%——100%FS

Constant force, constant deformation, constant displacement control accuracy: set value ≥10%FS, set value within ±0.1%; When the set value is <10%FS, the set value is within ±1%

Effective stretching space: 200mm/min

Range: 0——1000mm |

Maximum moving speed of beam: 200mm/min

Power supply: 20V±10%; 2000W
