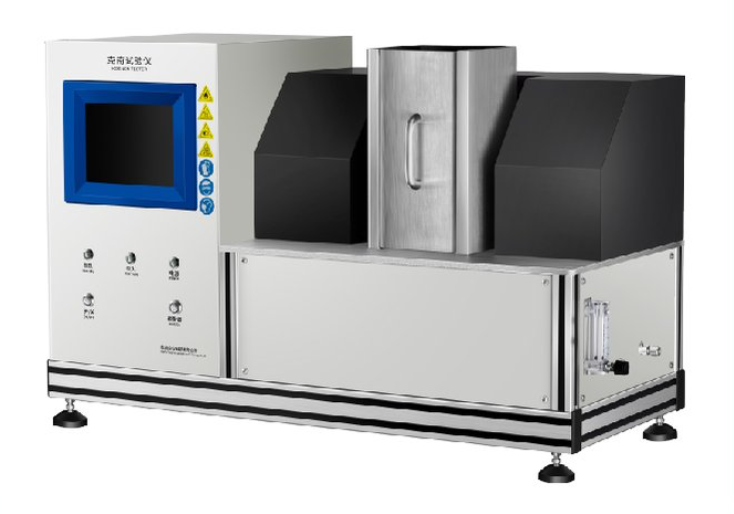

Konan Tester

Descrizione del prodotto

Conforms to the UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 11.5.1 Test 1(b): Kernan Test, GB/T 21578-2008 Test Method for Kernan of Dangerous Goods, and NY/T 1860.6-2010 Guidelines for the Determination of Physical and Chemical Properties of Pesticides Part 6: Explosive Properties.

Caratteristiche del prodotto

1) Adopting embedded processor and Windows CE operating system.

2) 8-inch LCD touch screen, real-time display of test status

3) Integration of “standard mode” and “calibration mode” two working modes, to meet the user test requirements

4) Automatic ignition heating system function, through the manual observation camera to ensure the success of the ignition, to effectively ensure the safety of personnel operations

5) 80N constant pressure automatic sample maker, accurate sample making, improve the test effect.

6) The equipment can realize the control of the heating rate through the flow meter

7) Heating and timing system work automatically, realizing the integration of test operation.

8) The heating device is equipped with an openable front door, which is convenient for checking the test results and realizing quick cleaning.

9) Equipped with video monitoring system to record the test process and observe the final result through playback after the test result to realize remote monitoring and judgment.

10) Remote control ignition

11) The test process is fully automated, without human intervention, support for parameter setting, data storage, view reports and other functions.

Parametri tecnici:
