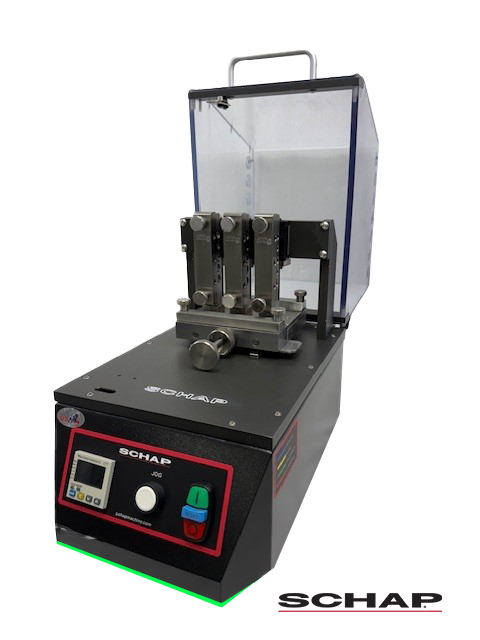

Veslic Multi-Functional Material Tester for Advanced Quality Control
StandardISO 13934-1 (Tensile Properties of Fabrics)ASTM D624 (Tear Strength of Rubber and Elastomers
Email: info@standard-groups.com
Contenuto
Standard
- ISO 13934-1 (Tensile Properties of Fabrics)
- ASTM D624 (Tear Strength of Rubber and Elastomers)
- AATCC 135 (Dimensional Changes in Textiles After Home Laundering)
Vantaggi del prodotto
- All-in-One Testing
- Combines tensile, tear, abrasion, and dimensional stability testing in a single platform, reducing equipment costs by 40%.
- Precision Engineering
- High-resolution load cell (±0.01 N accuracy) and 360° sample grips capture micro-deformations and weak points.
- Smart Automation
- AI-driven test protocols adjust speed, load, and cycles in real time, optimizing results for 50+ material types.
- User-Centric Design
- 15.6-inch touchscreen interface with multilingual support (English, French, German, Chinese) and one-touch calibration.
- Modular Expandability
- Optional add-ons for colorfastness, pilling, and UV resistance testing future-proof your lab.
Caratteristiche del prodotto
- Testing Modes:
- Tensile Strength: 0–5,000 N load capacity for fabrics, rubber, and composites.
- Tear Resistance: Trapezoidal and tongue-shaped specimen grips for ASTM/ISO compliance.
- Abrasion Simulation: Dual-motion system (rotary/reciprocating) with adjustable pressure (0.5–50 N).
- Shrinkage Analysis: Automated dimensional measurement post-laundering (AATCC 135).
- Real-Time Analytics:
- 4K camera system (120 FPS) with AI-powered defect detection and stress mapping.
- Data Ecosystem:
- Cloud-connected software stores 100,000+ test results, predicts material lifespan, and integrates with ERP/MES systems.
- Safety & Sustainability:
- Low-energy mode (60% power reduction), self-cleaning chamber, and CE/UL/RoHS certification.
Parametri tecnici
| Parametro | Specificazione |
|---|
| Load Cell Capacity | 0–5,000 N (±0.01 N accuracy) |
| Speed Range | 1–500 mm/min (tensile) / 1–200 RPM (abrasion) |
| Sample Grip Options | Pneumatic, hydraulic, and manual clamps for 5–50 mm widths |
| Dimensions (L×W×H) | 1,200×900×1,800 mm |
| Peso | 450 kg |
| Operating Environment | 5–40°C, ≤85% RH (non-condensing) |
| Alimentazione elettrica | 220V/110V AC, 50/60Hz, 4.5kW |
Accessories Included
- Testing Kits:
- 10× tensile grips (flat/rounded), 5× tear resistance blades (ASTM/ISO).
- 2× abrasion heads (felt/sandpaper discs).
- Calibration Tools:
- Load cell verifier, speedometer, and NIST-traceable certificate.
- Sample Fixtures:
- Pneumatic clamps for flat/curved specimens, vacuum chuck for thin films.
- Software Suite:
- AI analytics platform with predictive maintenance, ERP integration, and 8-language report generator.
- Safety Bundle:
- Emergency stop, acoustic enclosure, and fume extraction port.
Ideal For:
- Textile manufacturers (apparel, upholstery, technical fabrics)
- Automotive OEMs (interior trim, seat belt, and airbag durability)
- Medical device makers (biocompatible polymer testing)
- Research universities (multidisciplinary material science)
Disclaimer: Il contenuto di cui sopra è per riferimento e comunicazione solo tra addetti ai lavori del settore e non garantisce la sua accuratezza o completezza. Secondo le leggi e i regolamenti pertinenti e i regolamenti di questo sito web, le unità o le persone fisiche che acquistano articoli correlati devono ottenere qualifiche e condizioni di qualificazione valide.
