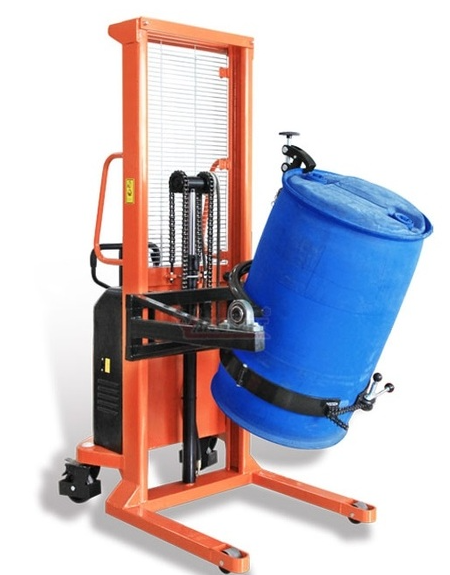

Pneumatic Dual Purpose Pourer/Stacker (Forklift)
Model: STD-200-YJTOperates with or without air supply (flexible usability).Pneumatic liquid-level li
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Contenuto
Modello: STD-200-YJT
- Operates with or without air supply (flexible usability).
- Pneumatic liquid-level lifting and dumping.
- Manual override for emergencies.
- Compact design for easy movement and manual operation.
- Explosion-proof electronic scale interface (compatible with drums and grinding tanks).
- Type: Pneumatic + Manual Integrated Tipping Machine
- Caratteristiche principali:
Specifiche tecniche:
- Horizontal Position: 1420 mm from ground
- Vertical Position: 1300 mm from ground
- Rated Pressure: 0.6–0.8 MPa
- Working Pressure: 10–12 bar
- Air Hose Size: Φ600 mm
- Lifting Height:
- Barrel Diameter: Standard international oil drum (Φ600 mm)
- Fixation Method: 360° rotatable clamping
- Lifting Mechanism: Pneumatic + manual adjustment
- Dimensioni: 1250×950×1850 mm
Customizable Options:
- Explosion-proof electronic scale integration.
- Custom interfaces for specific barrel types (e.g., grinding tanks).

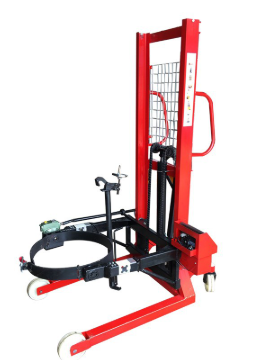

Modello: STD-500CC
- Dual-use design: Pneumatic/manual operation (works with or without air supply).
- Rated load: 500 kg (customizable for 1000 kg / 1500 kg).
- Safety-enhanced design:
- Compact and portable (manual push/pull operation).
- Anti-slip copper plates on fork contact surfaces.
- Reinforced structure for stable lifting.
- Type: Pneumatic Dual-Use Stacking Machine (with forks)
- Caratteristiche principali:
Specifiche tecniche:
- Hose size: Φ12–16 mm
- Air consumption: 500–980 L/min
- Pneumatic (air pressure: 0.6–0.8 MPa)
- Manual assist (optional)
- Lifting Capacity: 500 kg (base model)
- Drive Modes:
- Air Supply:
- Lifting Height: 1400 mm
- Fork Width: 100 mm (max.)
- Lifting Stroke: 950 mm
Customizable Options:
